CAML 51.2 V 100 Ah, 5.12 kWh LiFePO4 Battery – Wall Mount
CAML LiFePO4 (Lithium Iron Phosphate) Wall-Mount battery is designed to offer both space efficiency and high performance. This high-voltage energy storage solution provides a Battery Management System (BMS) compatible with various inverters available in the market. It offers a remarkable 6000 charge cycles and fast charging capabilities, allowing the battery to fully charge in just 2-4 hours. This lithium battery is easy to maintain and carry and also offers a space-saving storage solution, ideal for both domestic and commercial applications. Its durability, long lifespan, and performance make it a superior choice over traditional Lead Acid SMF batteries. This battery operates efficiently in a diverse temperature range and weighs almost ¼ of traditional SMF and Lead Acid batteries. Additionally, the system is expandable and supports parallel configuration to increase battery bank capacity.
- Fast Charging – Battery gets charged 100% in just 2-3 hours.
- Longer life – Compared to Lead acid and SMF, Lithium battery has a 6,000 cycle. life, which translates into 10-15 years of usable life.
- Light Weight – The weight of a lithium battery is 1/4th of Other comparable batteries, such as SMF and lead acid batteries.
- Zero Maintenance- Free, no memory effect.
- Expandable – Battery bank Expandable in parallel.
- Safe – Safest battery with modular design.
- Temperature Range – Wide operating temperature range.
- Installation – Quick and Easy Installation.

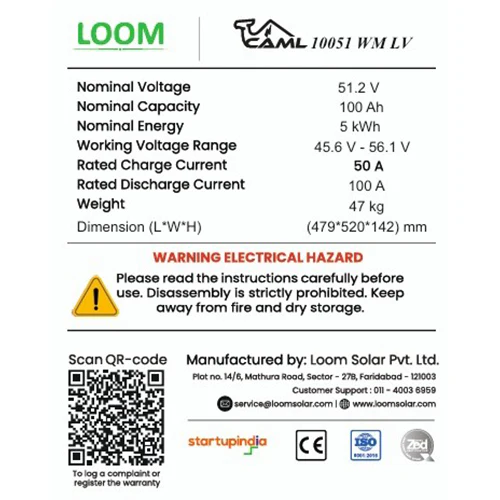

Technical Specifications
| Manufacturer | Loom Solar |
| Rated Capacity | 5120 Wh / 51.2 V / 100 Ah |
| Voltage | 51.2 V |
| Charging Cut-off Voltage | 56.16 V |
| Recommend Charge Current | 0.2 C, 20 A |
| Max. Charge Current | 0°-15°C: 20 A, 15°-45°C: 50 A |
| Operating Temperature Range | -20°C to 65°C |
| Environment | Indoor |
| Max. Output Power | 5.0 kW |
| Installation | Wall-mounted |

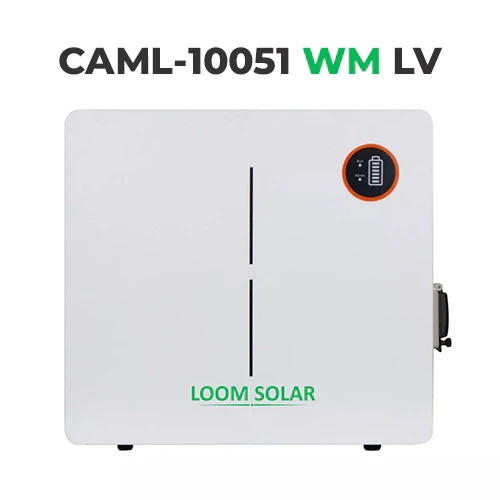

| Model Number | CAML10051-WM LV |
| Communication Port | CAN / RS485 for inverter communication |
| Protection Class | IP65 |
| Grid connection | Off-grid, Hybrid grid |
| Product name | CAML Wall Mounted Lithium-Ion Battery |
| Cell Technology | Lithium Iron Phosphate (LiFePO4) |
| Cycle life | 6000 Times @ 80% DoD |
| Warranty | 5-year |
| Protection | Smart BMS Protection with Communication |
| Efficiency | 98% |
